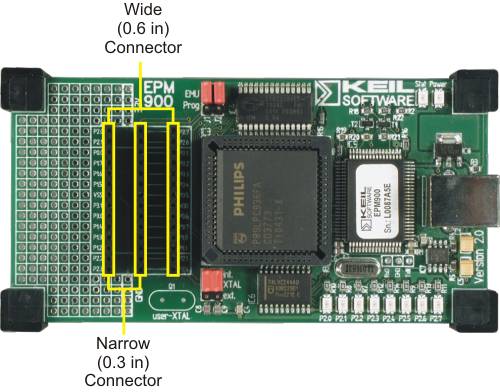

The Dual In-line Package (DIP) connector interfaces the EPM900 microcontroller with the target LPC9xx device.
This connector accepts either wide row (0.6 in/15.24 mm) or narrow row (0.3 in/7.62 mm) 28-pin DIP devices, cables or socket adapters.
