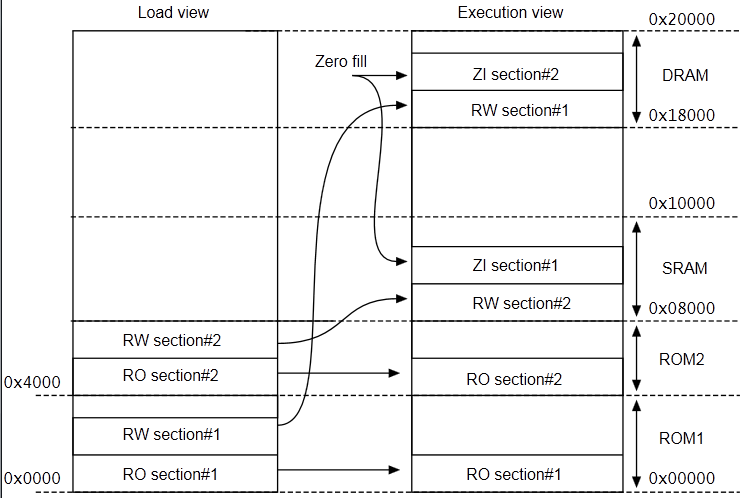

The scatter-loading description in Figure 5.3 loads the segments from the program1.o and program2.o files into memory corresponding to the map shown in Figure 5.4.
Unlike the simple memory map shown in Figure 5.2, this application cannot be specified to the linker using only the basic command-line options.
Caution
The scatter-loading description in Figure 5.3 specifies the location for code and data for program1.o and program2.o only. If you link an additional module, for example, program3.o, and use this description file, the location of the code and data for program3.o is not specified.
Unless you want to be very rigorous in the placement of code and data, it is advisable to use the * or .ANY specifier to place leftover code and data. See Placing regions at fixed addresses for more information.
