Type 2 image, one load region and non-contiguous execution regions
| |||
| Home > Image structure and generation > Type 2 image, one load region and non-contiguous execution regions | |||

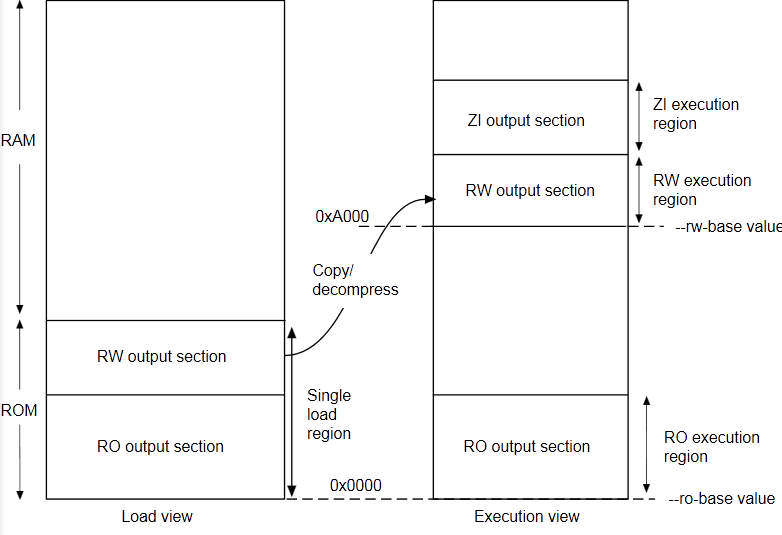

A Type 2 image consists of a single load region, and three execution regions in execution view. The RW execution region is not contiguous with the RO execution region. This approach is used, for example, for ROM-based embedded systems, where RW data is copied from ROM to RAM at startup:
Use the following command for images of this type:
armlink --ro_base 0x0 --rw_base 0xA000
Load viewIn the load view, the single load region consists of the RO and RW output sections placed consecutively, for example, in ROM. Here, the RO region is a root region, and the RW region is non-root. The ZI output section does not exist at load time. It is created at runtime.
In the execution view, the first execution region contains the RO output section and the second execution region contains the RW and ZI output sections.
The execution address of the region containing the RO output section is the same as its load address, so the RO output section does not have to be moved. That is, it is a root region.
The execution address of the region containing the RW output section is different from its load address, so the RW output section is moved from its load address (from the single load region) to its execution address (into the second execution region). The ZI execution region, and its output section, is placed contiguously with the RW execution region.
Use armlink options --ro_base to
specify the load and execution address for the RO output section,
and address--rw_base to
specify the execution address of the RW output section. If you do
not use the exec_address--ro_base option to specify the address,
the default value of 0x8000 is used by armlink.
For an embedded system, 0x0 is typical for the --ro_base value.
If you do not use the --rw_base option to specify
the address, the default is to place RW directly above RO (as in
a Type 1 image).
Use the --zi_base command-line option to
specify the base address of a ZI execution region.
Note
The execution region for the RW and ZI output sections cannot overlap any of the load regions.
