Peripheral Simulation

For STMicroelectronics STR912FW44 — Synchronous Serial Peripherals: SSP0-SSP1

Simulation support for this peripheral or feature is comprised of:

• Dialog boxes which display and allow you to change peripheral configuration.
• VTREGs (Virtual Target Registers) which support I/O with the peripheral.

These simulation capabilities are described below.

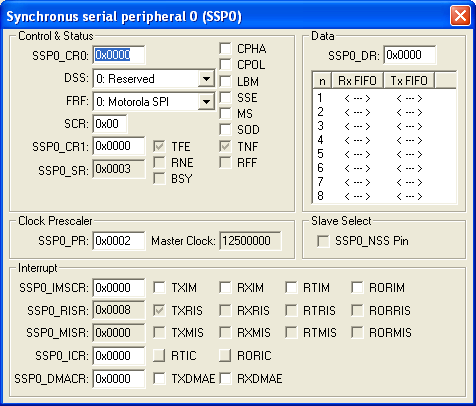

Synchronous Serial Peripheral 0 Dialog

Synchronous Serial Peripheral 1 Dialog

Synchronous Serial Peripheral 0 Input VTREG
Data Type: unsigned short

Synchronous Serial Peripheral 0 Output VTREG
Data Type: unsigned short

Synchronous Serial Peripheral 1 Input VTREG
Data Type: unsigned short

Synchronous Serial Peripheral 1 Output VTREG
Data Type: unsigned short
