Peripheral Simulation

For NXP (founded by Philips) 80C554 — Compare Unit (Connected to Timer2)

Simulation support for this peripheral or feature is comprised of:

• Dialog boxes which display and allow you to change peripheral configuration.

These simulation capabilities are described below.

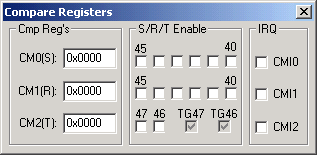

Compare Register Dialog
