MCBSTM32F400

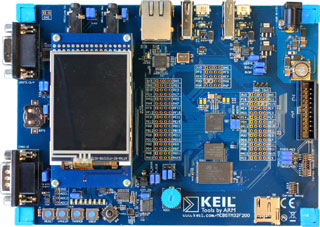

The Keil MCBSTM32F400 Evaluation Board enables you to create and test working programs based on the STMicroelectronics STM32 F4xx series of ARM Cortex™-M4 processor-based devices.

Features

• 168MHz STM32F407IG ARM Cortex™-M4 processor-based MCU in 176-pin BGA
• On-Chip Memory: 1MB Flash & 192KB RAM
• External Memory: 8MB NOR Flash, 512MB NAND Flash, 2MB SRAM, 8KB I²C EEPROM with NFC interface
• 2.4 inch Color QVGA TFT LCD with resistive touchscreen
• 10/100 Ethernet Port
• USB 2.0 Full Speed - USB, USB-OTG, & USB Host
• USB 2.0 High Speed - USB, USB-OTG, & USB Host
• 1 CAN Interface
• Serial/UART Port
• MicroSD Card Interface
• 5-position Joystick
• 3-axis digital Accelerometer
• 3-axis digital Gyroscope
• Analog Voltage Control for ADC Input (potentiometer)
• Audio CODEC with Line-In/Out and Speaker/Microphone
• Digital Microphone
• Digital VGA Camera
• Push-Buttons for Reset, Wakeup, Tamper and User
• 8 LEDs directly connected to port pins
• Power Supply via:
  • High Speed and Full Speed USB (micro) connectors
  • Power jack (8V-12V) with Voltage Regulator capable to supply both USB host interfaces (500mA each)
• Debug Interface Connectors
  • 20 pin JTAG (0.1 inch connector)
  • 10 pin Cortex debug (0.05 inch connector)
  • 20-pin Cortex debug + ETM Trace (0.05 inch connector)

Evaluation Software

The MCBSTM32F400 Evaluation Board and Starter Kit include the MDK-Lite development tools. These tools help you get started writing programs and testing the microcontroller and its capabilities. Sample applications that run on the MCBSTM32F400 and a Quickstart guide are included.
